BGPLS-4×0.22mm 316L Stainless Steel Armored Signal Cable

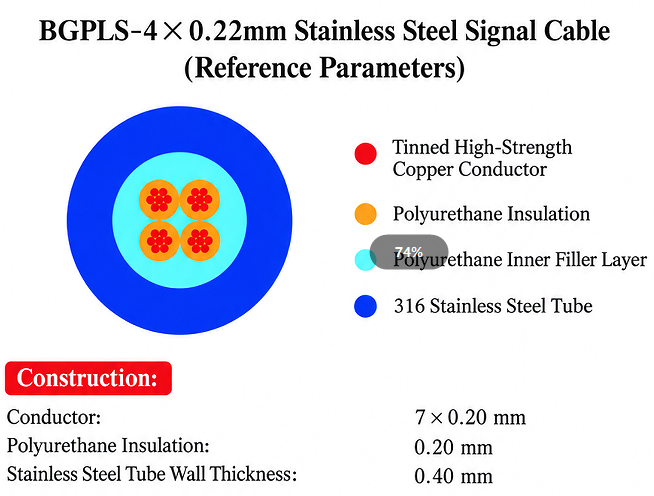

Product Overview Unlike conventional signal wires, the BGPLS series uses a 316L stainless steel protective tube as the outer layer to improve resistance against mechanical stress, corrosion, and environmental exposure. The internal conductors are individually insulated with polyurethane material, helping maintain signal integrity while providing enhanced durability. The cable combines: High-strength copper conductors for efficient electrical transmission Polyurethane insulation for flexibility and environmental resistance Polyurethane filler layer for structural stability 316L stainless steel tube protection for mechanical strength and corrosion resistance This construction allows the cable to perform consistently in industrial environments where standard cables may experience damage or reduced service life. Key Features 1. 316L Stainless Steel Protective Structure The outer stainless steel tube provides a strong protective barrier against external impact, abrasion, and corrosive environments. The 316L material offers excellent resistance to moisture and chemical exposure, making it suitable for industrial applications requiring additional protection. 2. High Temperature Capability The cable is designed for temperature environments ranging from -50°C to +380°C, supporting applications where electrical connections are exposed to elevated temperatures or temperature fluctuations. 3. Compact Multi-Core Signal Transmission With a 4-core 0.22mm conductor configuration, the cable offers a compact solution for sensor signals, control systems, and instrumentation connections where installation space is limited. 4. Flexible Mechanical Performance The cable provides a minimum bending radius of 200mm and a tensile strength of 9kN, allowing it to withstand installation stress while maintaining structural reliability. 5. Stable Electrical Performance The cable delivers consistent electrical characteristics with: Rated voltage: 300 VDC Insulation resistance: ≥500 MΩ·km DC resistance: ≤86 Ω/km Capacitance: ≤0.17 μF/km These properties help ensure dependable signal transmission in industrial monitoring and control systems.
