Wire Rope Corrosion Resistant Steel Cable

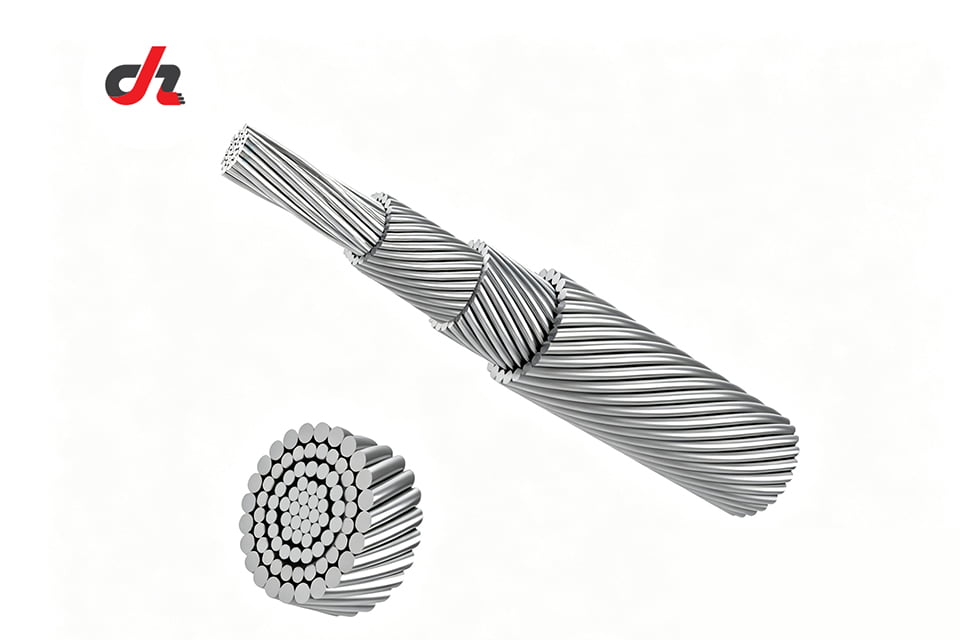

Structure Description

The Wire Rope is designed for high-strength lifting, pulling, and downhole applications. It features a multi-strand steel wire structure with excellent tensile strength, flexibility, corrosion resistance, and long service life. The structure includes:

1. Steel Wire

• Made of high-quality carbon steel or alloy steel wires with high tensile strength and fatigue resistance.
• Multiple steel wires are twisted into strands to provide excellent load-bearing capacity, flexibility, and durability.
• The steel surface can be treated with galvanization or corrosion-resistant coating to improve protection in harsh environments.

2. Core Structure

• The rope core provides internal support and maintains the overall shape and stability of the wire rope.
• Available in fiber core, steel core, or customized core designs according to application requirements.
• The core improves flexibility, crushing resistance, and service performance.

3. Conductor (Optional)

• For special monitoring or electric wire rope applications, conductive elements such as copper wire can be integrated.
• The conductor enables power transmission and signal communication for advanced operating systems.

4. Insulation Layer (Optional)

• High-temperature and oil-resistant insulation materials are applied when conductive components are included.
• The insulation layer protects conductors from moisture, chemical corrosion, and electrical leakage.

5. Protective Coating / Sheath

• The outer protective layer provides resistance against abrasion, corrosion, moisture, and environmental damage.
• Coatings such as galvanized zinc or polymer protection extend service life and improve reliability.

6. Sealing Structure (Optional)

• A sealing design prevents water, oil, and corrosive substances from entering the internal structure.
• It improves durability and ensures stable performance in underwater, oilfield, or harsh industrial environments.

Overall Structure:
Steel Wire Strands + Rope Core + (Optional Conductor) + (Optional Insulation Layer) + Protective Coating / Sheath + Sealing Structure
