Logging Cable
Logging Cable
Model:
Logging Cable
Designed for engineering or production logging applications; features a high-strength steel wire armored structure offering high tensile strength, corrosion resistance, and high-temperature resistance; conductors consist of bare copper wire or silver-plated copper wire.
Key Specifications
Conductor
19×0.26mm
Insulation (PP)
2.64mm
Inner Layer Steel Wire Armor
12×0.79mm
Outer Layer Steel Wire Armor
18×0.79mm
ISO 9001 Certified
CNPC & Sinopec Approved
Global Export Ready
Custom R&D Available
Product Overview
W1B-5.61×1.0 Single-Core Logging Cable is a single-conductor armored wireline cable specifically designed for oil and gas well logging operations. The cable structure combines a central electrical conductor with high-strength steel wire armor to provide both reliable data transmission and superior mechanical performance in harsh downhole environments.
Technical Description
Logging Cable W1B-5.61×1.0 Single-core Logging Cable
W1B-5.61×1.0 refers to a specialized, single-conductor armored geophysical well logging cable. These electro-mechanical wirelines are heavily used in oilfields, mining, and water drilling to lower subsurface measurement probes (tools) and transmit.

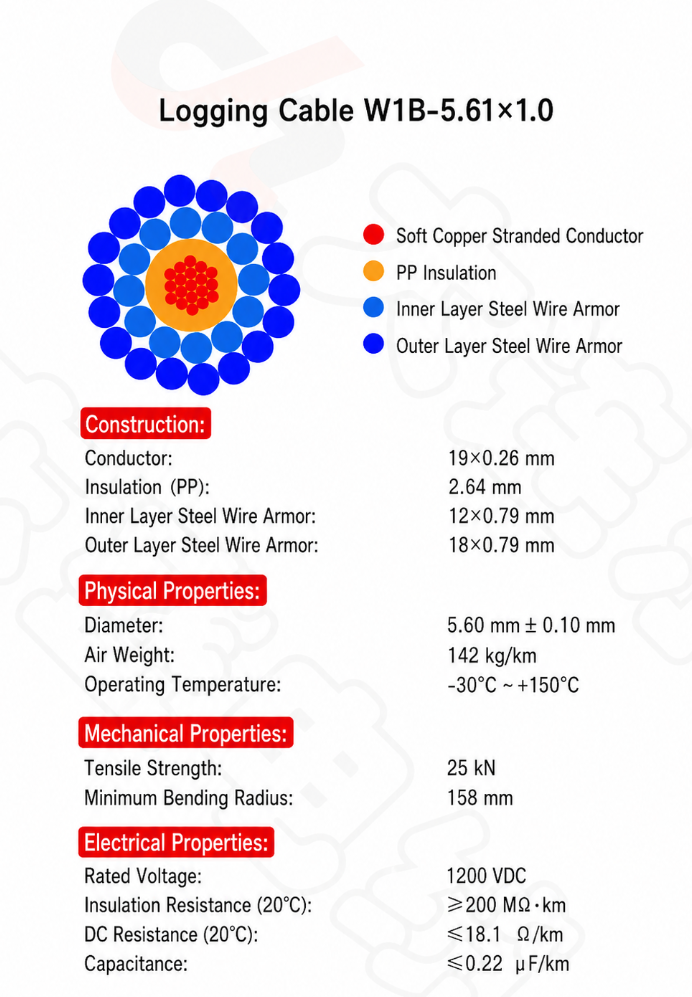

Cable Construction
- Conductor
- Single-core stranded copper conductor
- Cross-sectional area: 1.0 mm²
- Provides stable electrical signal and power transmission with low resistance.
- Insulation Layer
- High-temperature resistant polypropylene (PP), FEP, ETFE, or customized insulation material.
- Provides excellent dielectric performance and protects the conductor from high temperature, pressure, and corrosive fluids.
- Bedding / Cushion Layer
- Special protective layer applied over the insulation.
- Enhances mechanical protection and improves cable flexibility.
- Inner Armor Layer
- First layer of high-strength galvanized steel wires.
- Provides tensile strength and impact resistance.
- Outer Armor Layer
- Second layer of high-strength galvanized steel wires wound in the opposite direction.
- Increases crushing resistance, torque balance, and overall mechanical durability.
- Cable Outer Diameter
- Nominal diameter: 5.61 mm
Logging Cable Main Features
-
-
- Single-core conductor design for reliable signal transmission
- 5.61 mm nominal outer diameter suitable for standard wireline units
- 1.0 mm² conductor cross-section with low electrical resistance
- Double-layer steel wire armor for high tensile strength
- Excellent abrasion, corrosion, and pressure resistance
- Stable performance under high-temperature and high-pressure environments
- Suitable for deep well and extended logging operations
- Long service life and easy maintenance
-
Application Scenarios
Downhole Logging Operations
Designed for wireline logging tools in oil & gas wells
Deep Well Exploration
Suitable for extreme depth and high-pressure environments
Perforating Operations
Pump-down and wireline perforating in production wells
High-Temperature Environments
Stable performance in geothermal and HPHT wells
Technical Specifications
| Parameter | Value | Unit |
|---|---|---|
| Conductor | 19×0.26 | mm |
| Insulation (PP) | 2.64 | mm |
| Inner Layer Steel Wire Armor | 12×0.79 | mm |
| Outer Layer Steel Wire Armor | 18×0.79 | mm |
| Diameter | 142 | kg/km |
| Operating Temperature | -30°~+150° | ℃ |
| Tensile Strength | 25 | KN |
| Minimum Bending Radius | 158 | mm |
| Rated Voltage | 1200 | VDC |
| Insulation Resistance (20°C) | ≥200 | MΩ·km |
| DC Resistance（20°C) | ≤18.1 | Ω/km |
| Capacitance | ≤0.22 | uF/km |
