High Quality Encapsulated Cable

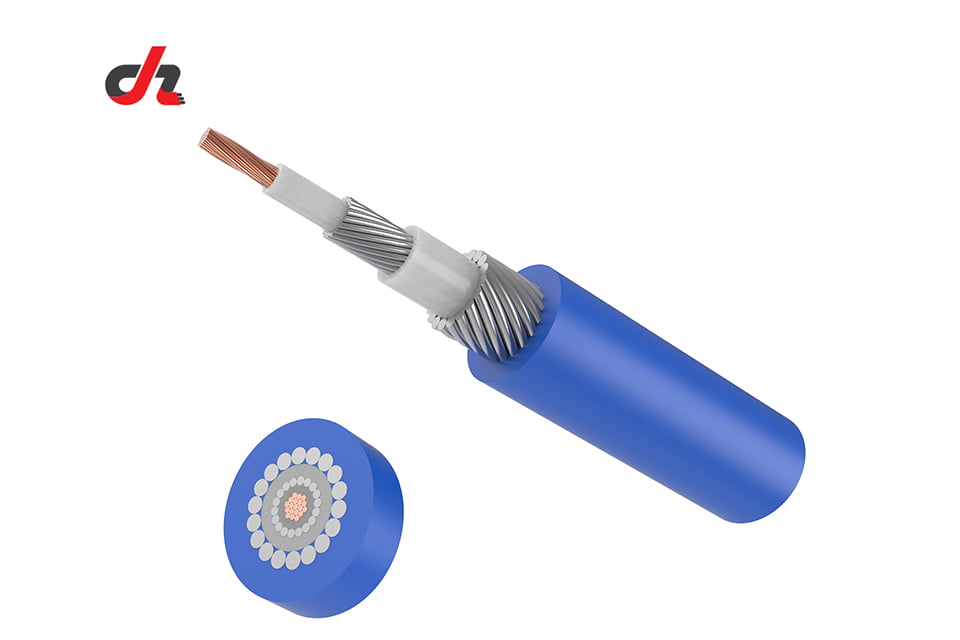

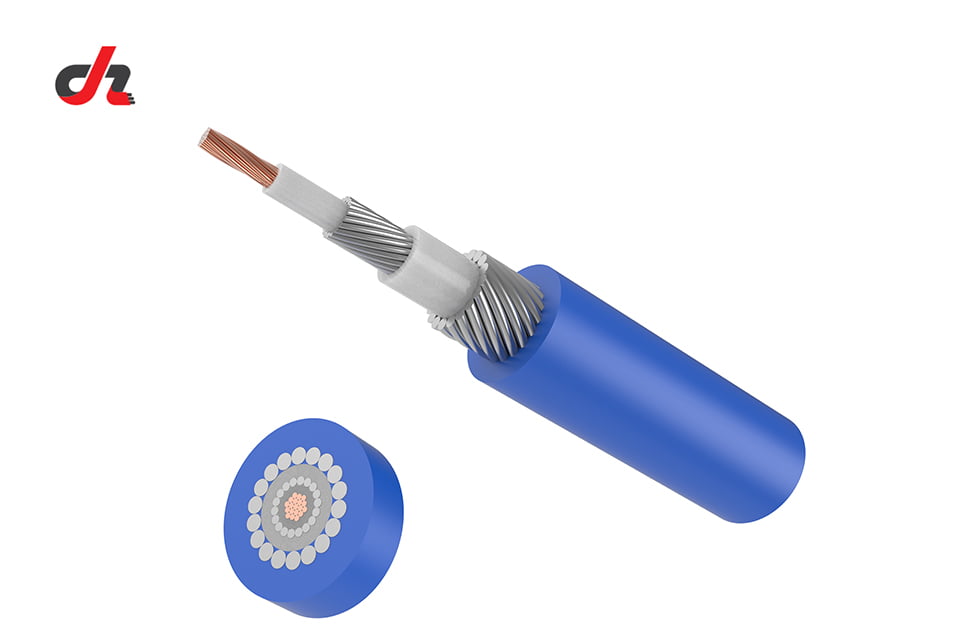

Structure Description

The Encapsulated Cable is designed for long-term downhole monitoring applications, featuring a reliable multi-layer structure that provides excellent corrosion resistance, pressure resistance, and cost-effective performance in harsh well environments. The cable structure includes:

1. Steel Wire Armor
   • High-strength steel wire armor provides excellent tensile strength and mechanical protection.
   • The armored layer enhances resistance to pulling force, impact, crushing, and external pressure during installation and long-term downhole operation.
2. Conductor
   • Available with high-quality bare copper wire or optical fiber conductors.
   • Bare copper conductors ensure stable power and signal transmission, while optical fiber conductors provide high-speed data transmission for advanced monitoring systems.
3. Insulation Layer
   • High-temperature resistant and oil-resistant insulation materials are used to maintain reliable electrical insulation performance.
   • The insulation layer protects the conductor from moisture, chemical corrosion, and electrical interference.
4. Encapsulation / Sealing Structure
   • The encapsulated sealing layer tightly protects internal components and prevents the penetration of water, oil, gas, and corrosive fluids.
   • This structure improves pressure resistance and ensures long-term reliability in underground environments.
5. Outer Sheath
   • The protective outer sheath is made of durable corrosion-resistant and wear-resistant materials.
   • It provides additional protection against abrasion, temperature fluctuations, and mechanical damage.

Overall Structure:
Steel Wire Armor + Conductor (Bare Copper Wire / Optical Fiber) + High Temperature Insulation Layer + Encapsulation Sealing Layer + Protective Outer Sheath
